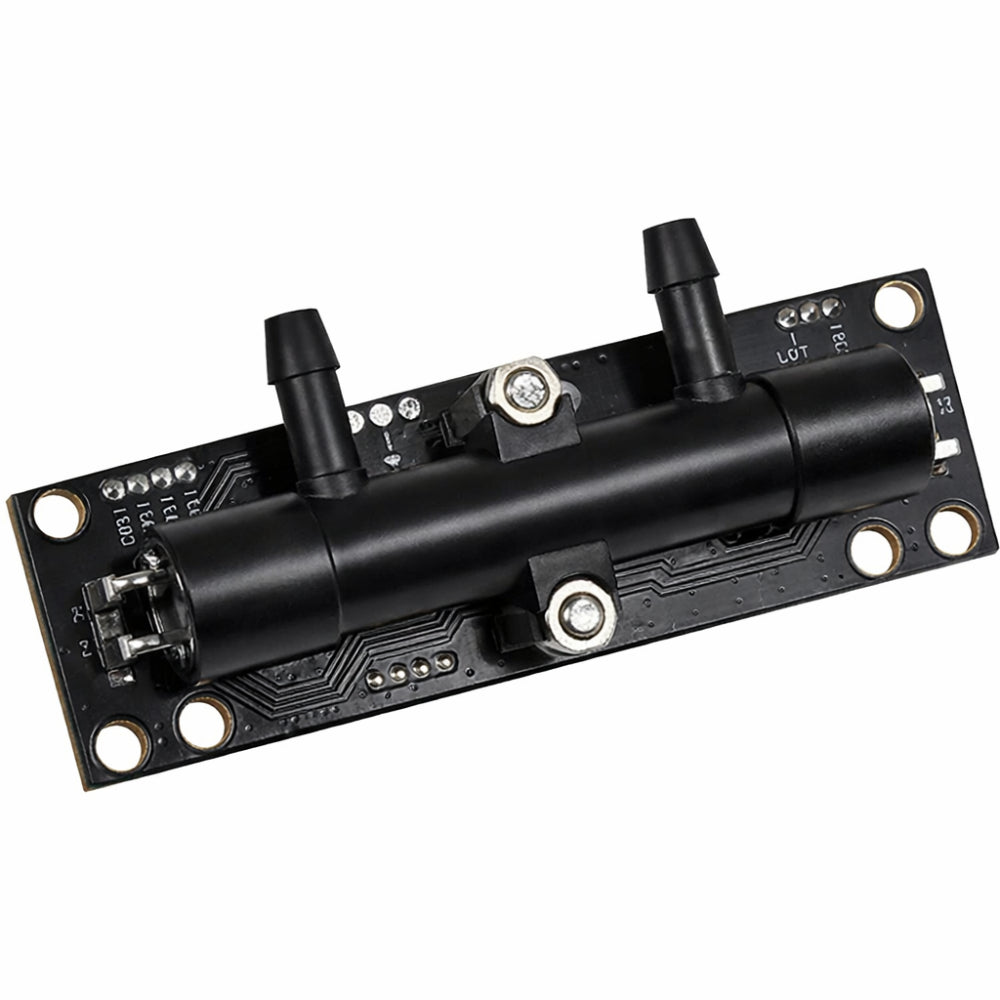

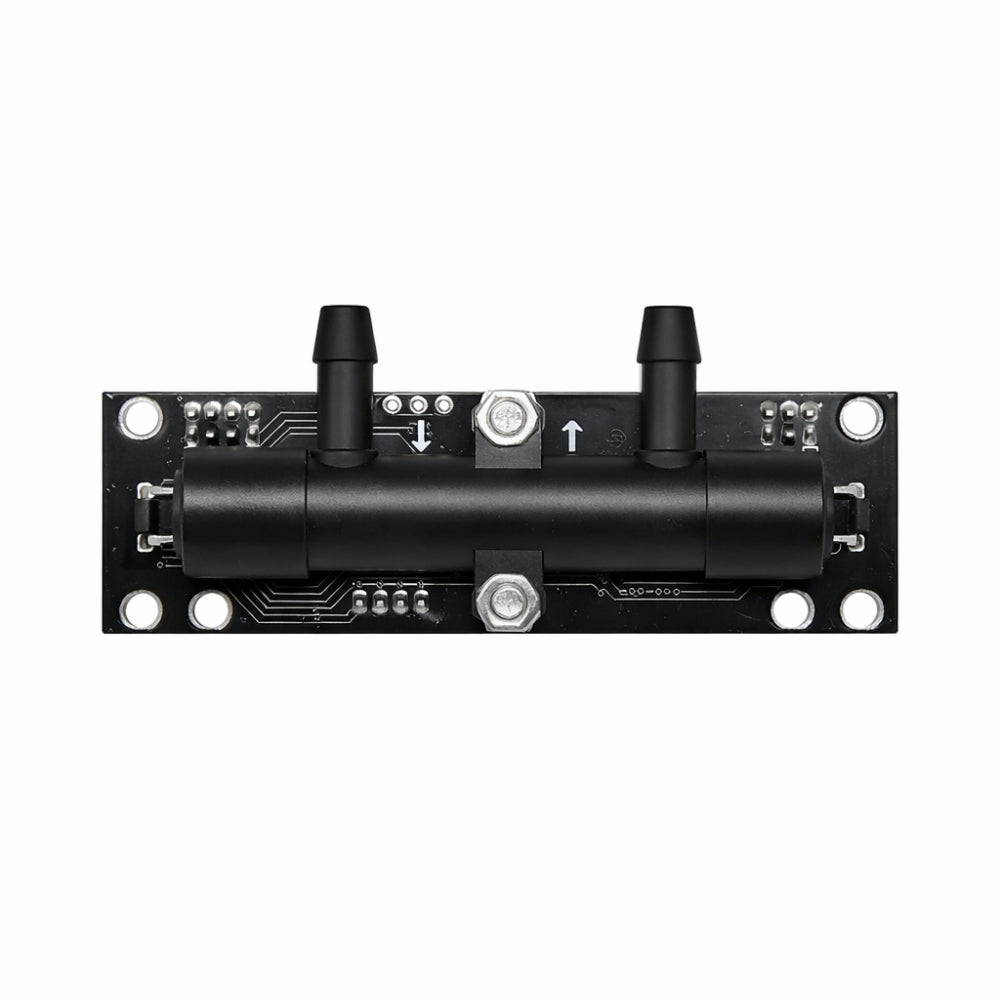

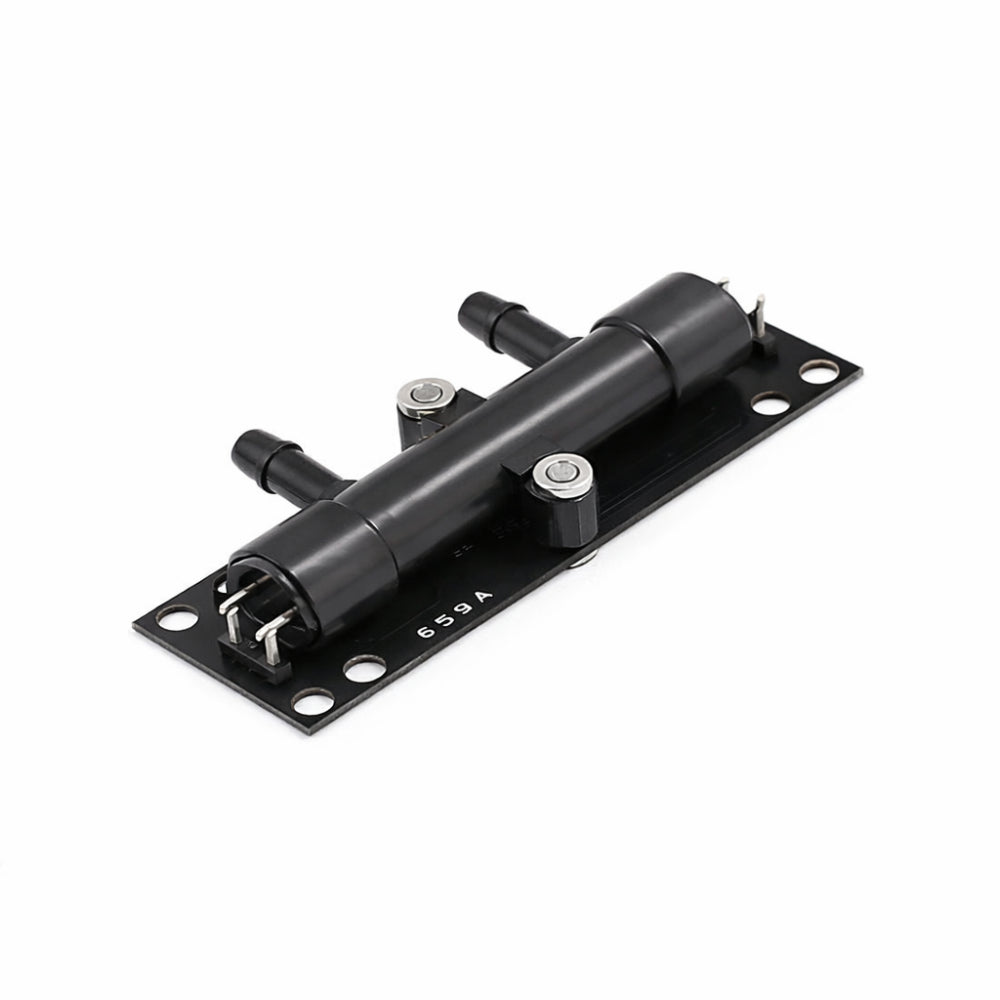

ASAIR AOF1010 Ultrasonic Oxygen (O₂) Sensor Module

The AOF1010 Ultrasonic Oxygen Sensor is an economical and practical oxygen concentration detection module based on the ultrasonic measurement principle. It offers high precision, excellent reliability, long service life, and ease of use, making it suitable for both industrial and commercial applications.

In addition to measuring oxygen concentration, the AOF1010 can also simultaneously measure oxygen flow rate and temperature. With strong anti-interference capability and no calibration requirement, it is widely used in the oxygen generator industry as well as agriculture, healthcare, and environmental monitoring.

Note: Actual product version or printed markings may vary depending on the batch.

Features

  • Ultrasonic principle based oxygen detection
  • High precision with long service life
  • Strong anti-interference ability
  • Simultaneous measurement of oxygen concentration and flow rate
  • Compact size, easy installation, and simple operation
  • No verification or recalibration required
  • Cost-effective and reliable solution

Technical Details

  • Item Type: Oxygen Sensor
  • Model No.: AOF1010
  • Operating Voltage: 5 V DC
  • Preheat Time: 10 seconds
  • Communication Interface: UART (9600 bps)
  • Operating Temperature: 5 – 55 °C

Measurement Specifications

  • Oxygen Concentration Range: 21% – 95.6%
  • Oxygen Concentration Accuracy: ±1.8%
  • Flow Range: 0 – 10 L/min
  • Flow Resolution: 0.1 L/min
  • Flow Accuracy: ±0.2 L/min

Applications

  • Oxygen generators and concentrators
  • Medical treatment and healthcare equipment
  • Chemical and industrial process monitoring
  • Mining and safety systems
  • Food industry and packaging applications
  • Agriculture and environmental testing

Package Includes

  • 1 × ASAIR AOF1010 Ultrasonic Oxygen Sensor Module
