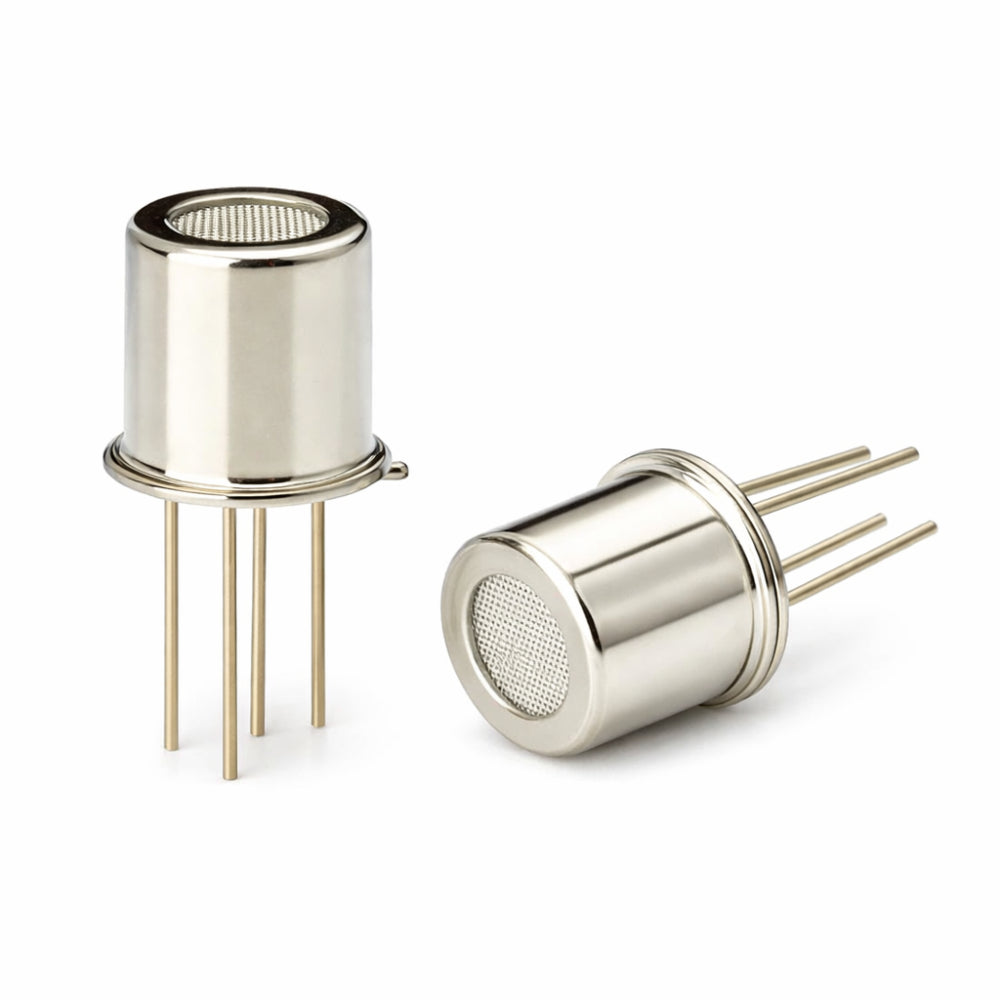

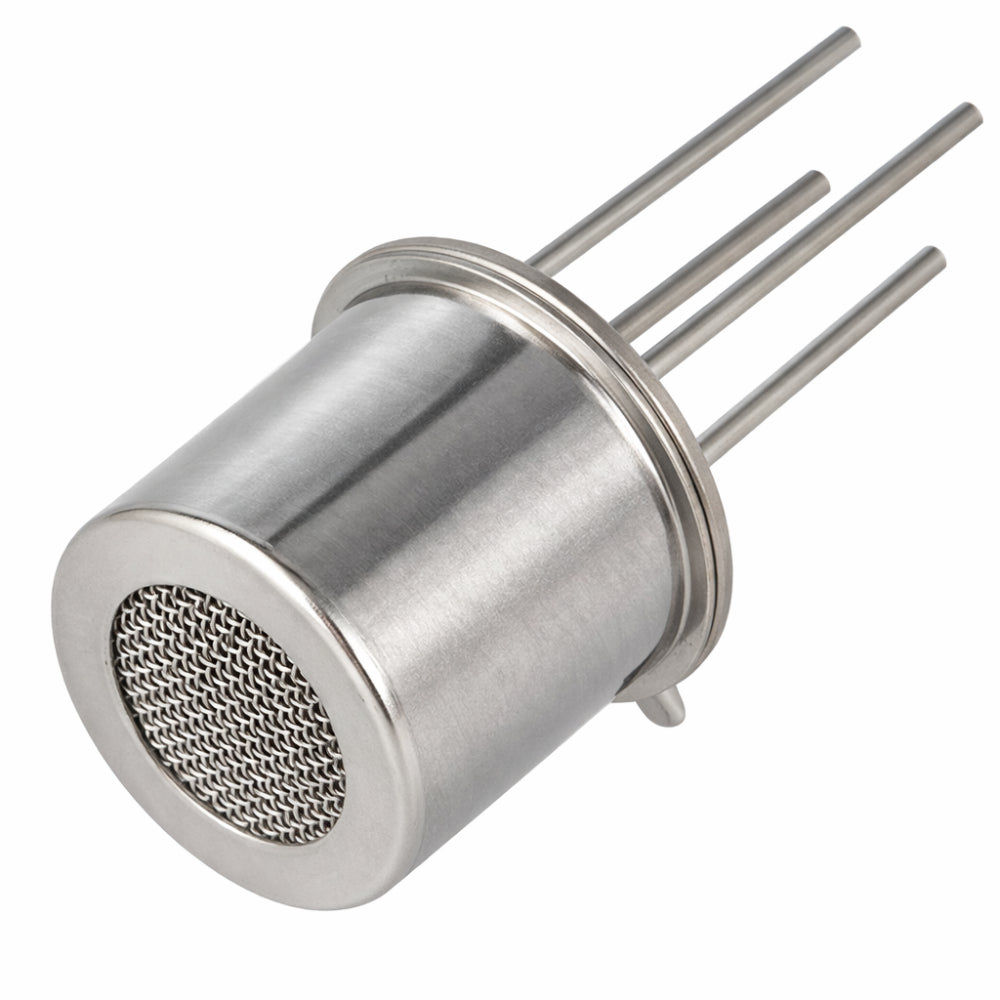

Winsen MG812 Solid Electrolyte Carbon Dioxide (COâ‚‚) Gas Sensor

The MG812 COâ‚‚ Gas Sensor is a chemical-type gas sensor based on the solid electrolyte cell principle, designed for accurate detection of carbon dioxide (COâ‚‚). When exposed to COâ‚‚, electrochemical reactions occur between the positive and negative electrodes, generating an electromotive force (EMF) between the sensitive electrode and the reference electrode. This EMF output voltage is proportional to the COâ‚‚ concentration.

The MG812 sensor offers high sensitivity, good selectivity, and stable repeatability, with minimal influence from temperature and humidity. Its compact size and low power consumption make it suitable for long-term COâ‚‚ monitoring in industrial and environmental applications.

Features

  • Solid electrolyte cell based COâ‚‚ gas sensor
  • High sensitivity with good selectivity to COâ‚‚
  • Compact size with low power consumption
  • Minimal influence from temperature and humidity
  • Stable performance and excellent repeatability
  • Metal shell standard package
  • Reliable EMF voltage output

Technical Details

  • Item Type: COâ‚‚ Sensor
  • Model No.: MG812
  • Target Gas: Carbon Dioxide (COâ‚‚)
  • Detection Range: 350 – 10,000 ppm COâ‚‚
  • Output Signal: ≥ 25 mV / 1000 ppm COâ‚‚ (EMF)
  • Standard Package: Metal shell

Heater Specifications

  • Heater Voltage (VH): 5.0 ± 0.1 V
  • Heater Resistance (RH): 56.0 ± 3 Ω
  • Heater Current (IH): 90 ± 10 mA
  • Heater Power Consumption (PH): 450 ± 50 mW

Environmental Specifications

  • Operating Temperature: -20 °C to +50 °C
  • Storage Temperature: -20 °C to +70 °C
  • Working Temperature (Tao): -20 °C to +50 °C

Applications

  • Carbon dioxide (COâ‚‚) emission monitoring
  • Indoor air quality and ventilation monitoring
  • Combustion and industrial process control
  • Environmental monitoring systems
  • Greenhouse and agricultural COâ‚‚ monitoring

Package Includes

  • 1 × Winsen MG812 Solid Electrolyte COâ‚‚ Gas Sensor
