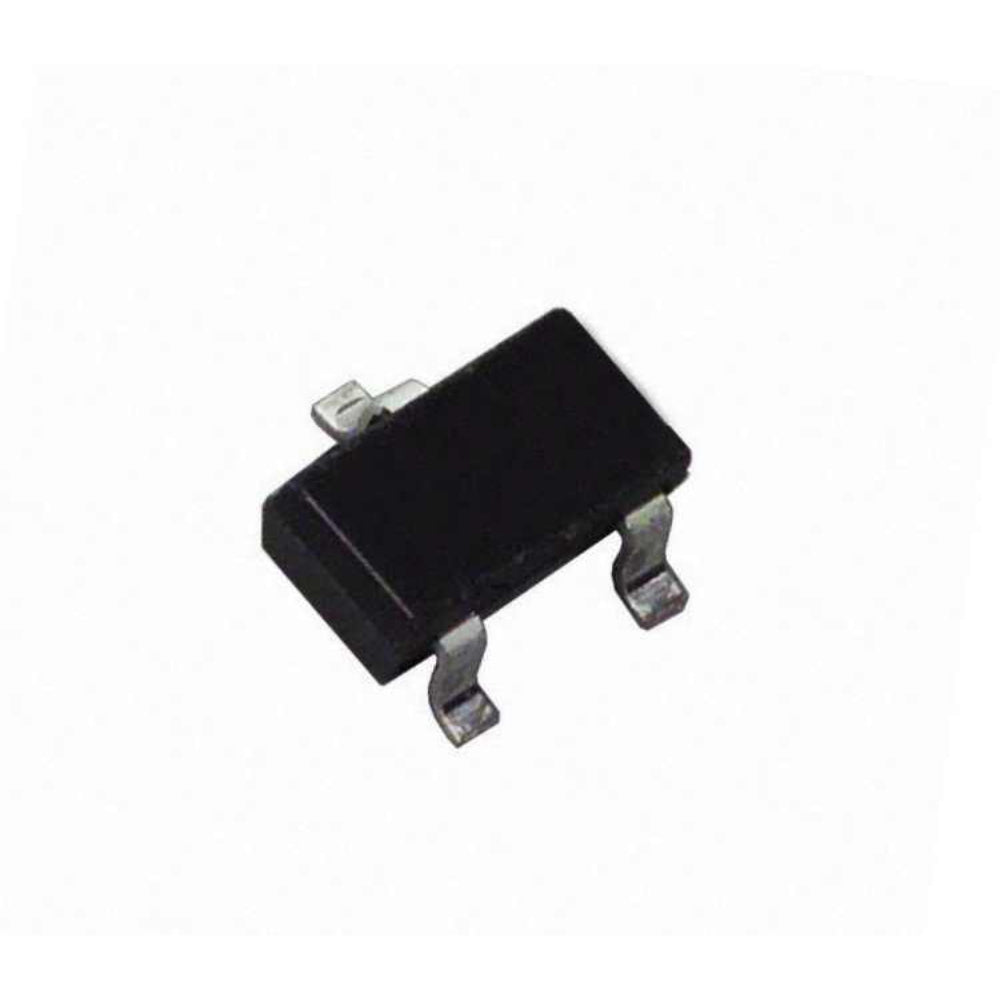

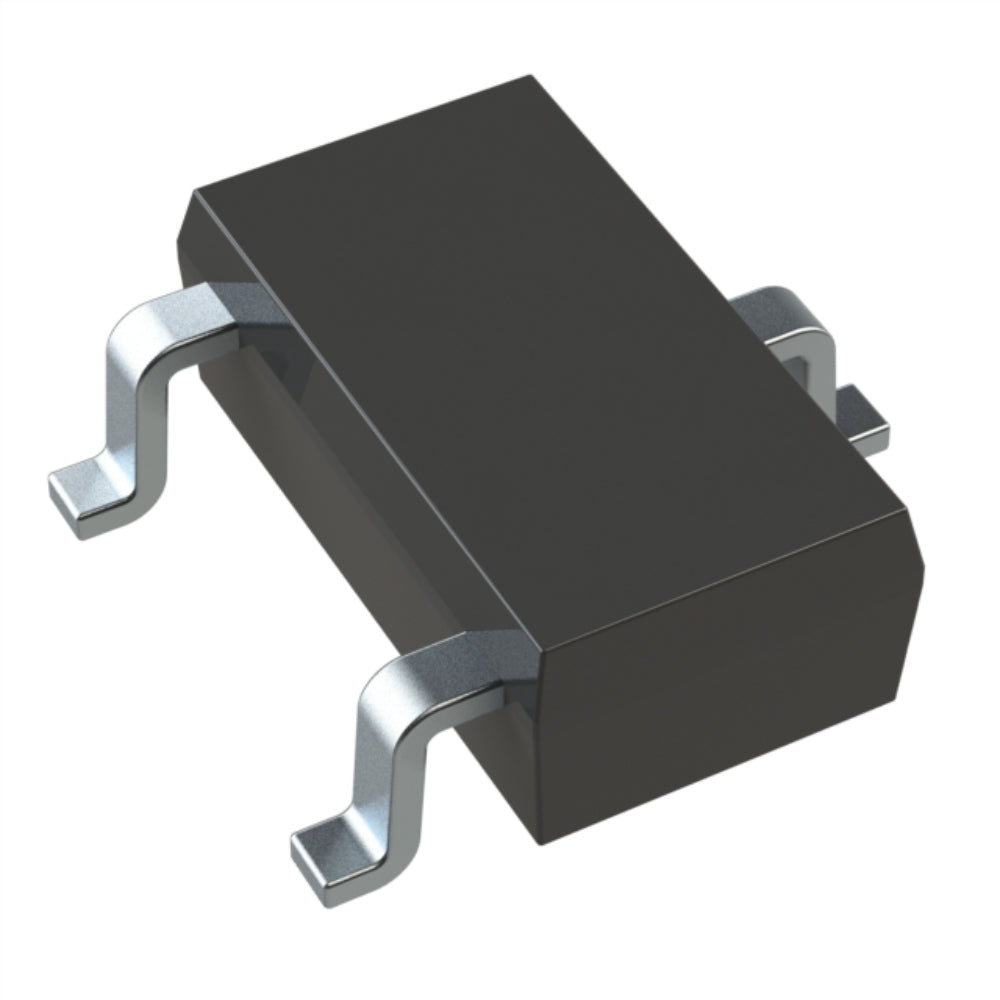

XC6206P152MR Low Dropout Regulator IC SMD SOT24 Package
![XC6206P152MR Low Dropout Regulator IC SMD SOT24 Package_2]()
![XC6206P152MR Low Dropout Regulator IC SMD SOT24 Package_1]()
![XC6206P152MR Low Dropout Regulator IC SMD SOT24 Package]()
![XC6206P152MR Low Dropout Regulator IC SMD SOT24 Package_2]()
![XC6206P152MR Low Dropout Regulator IC SMD SOT24 Package_1]()
![XC6206P152MR Low Dropout Regulator IC SMD SOT24 Package]()
Ideal for powering MCUs, sensors, communication modules, and handheld electronics, the XC6206P152MR offers high power supply ripple rejection ratio (PSRR) and supports operation with low ESR ceramic capacitors. Its reliable voltage regulation, compact size, and ease of PCB integration make it a preferred choice for modern embedded system designs requiring 1.5V power rails.
Note:
Product Images are shown for illustrative purposes only and may differ from the actual product.
-66%
XC6206P152MR Low Dropout Regulator IC SMD SOT24 Package
Available:In Stock
- Product SKU: INTEG197
₹ 3
₹ 9
Need Volume Discounts? Deals are specially designed for you. Click here
Need Customization? Provide us more details Click here
🏠
Warehouse Details:
Specification
Description
XC6206P152MR Low Dropout Regulator IC SMD SOT24 Package
The XC6206P152MR is a high-performance, low dropout (LDO) voltage regulator IC designed to deliver a fixed output voltage of 1.5V with up to 150mA output current. Packaged in a compact SOT-24 SMD form factor, it is optimized for use in portable, battery-powered, and space-constrained electronic applications. This IC features low quiescent current, low dropout voltage, and integrated protection circuits such as thermal shutdown and current limit to ensure stable and safe operation under varying conditions.Ideal for powering MCUs, sensors, communication modules, and handheld electronics, the XC6206P152MR offers high power supply ripple rejection ratio (PSRR) and supports operation with low ESR ceramic capacitors. Its reliable voltage regulation, compact size, and ease of PCB integration make it a preferred choice for modern embedded system designs requiring 1.5V power rails.
Note:
Product Images are shown for illustrative purposes only and may differ from the actual product.
Technical Details
- IC Name: XC6206P152MR
- Function: Fixed 1.5V Low Dropout Regulator
- Package: SOT-24 (SMD)
- Output Voltage: 1.5V ±2%
- Output Current: Up to 150mA
- Input Voltage Range: 2V to 6V
- Dropout Voltage: Typically 250mV at 100mA
- High PSRR: Up to 70dB at 1kHz
- Internal Thermal and Current Limiting Protection
- Operating Temperature: -40°C to +85°C
Features
- Fixed 1.5V output voltage
- Output current up to 150mA
- Low dropout voltage
- High PSRR and low noise
- Short-circuit and thermal protection
- SOT-24 compact SMD package
- Supports low ESR ceramic capacitors
Applications :
- Battery-powered devices
- Mobile and wearable electronics
- Sensor and communication modules
- Microcontroller power supplies
- Embedded and IoT systems
Physical Attributes
- Package: SOT-24
- Pin Count: 3
- Mounting Type: Surface Mount (SMD)
- Weight: ~0.25g
Package Includes
- 1 x XC6206P152MR 1.5V Low Dropout Regulator IC – SOT-24 SMD
